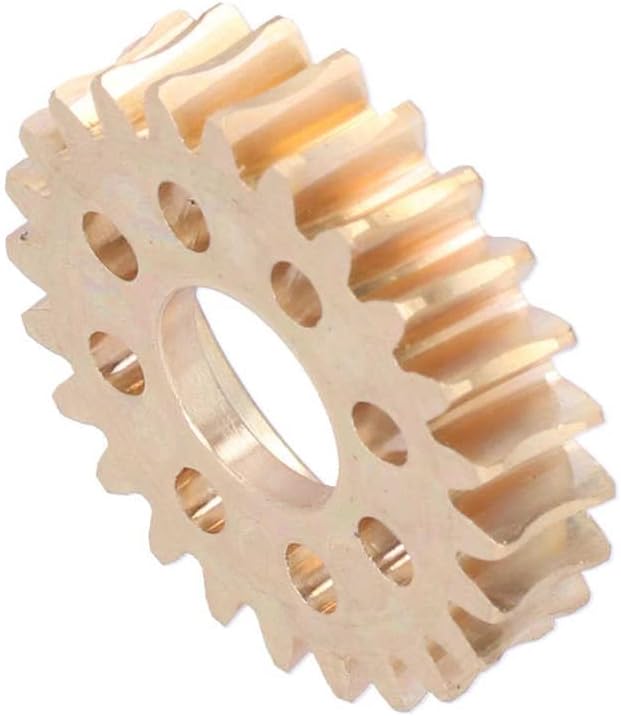

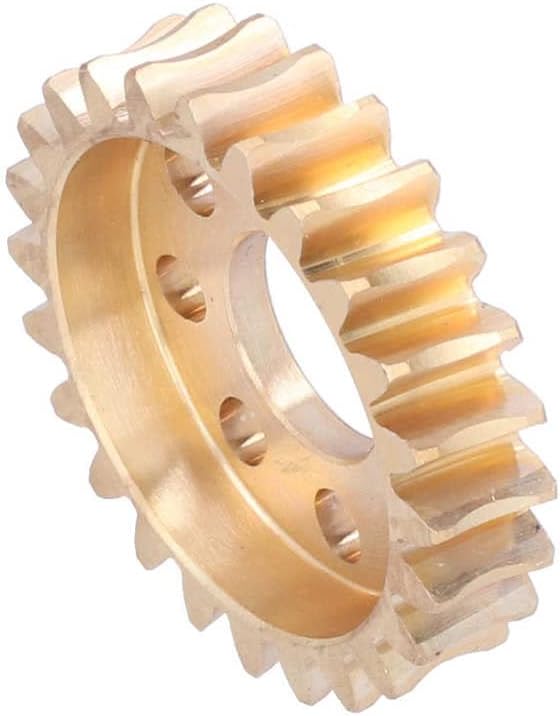

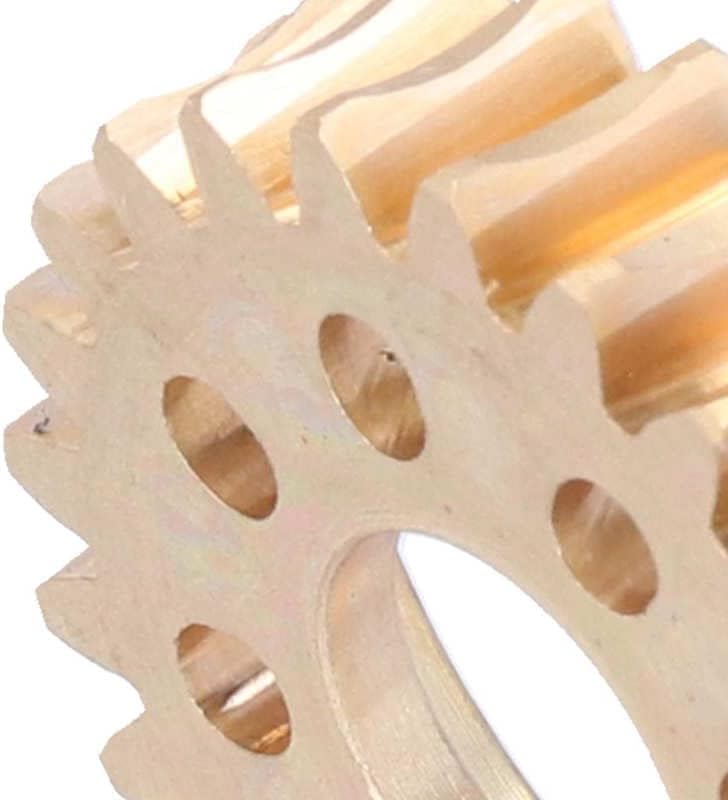

24 Teeth Brass Worm Brass Worm Gear Wheel Strong for Motor Drive Gears

24 Teeth Brass Worm Brass Worm Gear Wheel Strong for Motor Drive Gears Features:1. The 24 tooth brass worm gear should be used with a stainless steel worm. The combination of this 24 tooth brass worm and the stainless steel worm that drives it creates a very compact, high torsion and robust 24:1 gear reduction ratio.2. The combination is self locking and can realize reverse self locking, that is, only the worm can drive the worm wheel, but the worm wheel cannot drive the worm, so that the motor does not need to continue to apply torques to maintain the load.3. It has a modulus of 1.5 and a center hole diameter of 14mm. It has a robot common hole grid pattern. There is a circular slot on one of the end faces of the gear, which is conducive to not changing the strength of the gear. Greatly reduce the weight of the gear.4. It can avoid the interference of the protrusion of the screw head used to install the fixed gear, and ensure the flat of the installation. If the circular slot affects the assembly, then we can flip the gear and usethe other side of the gear to assemble.5. The other side of the brass worm gear is a flat , this ingenious design facilitates the installation and fixation of the worm gear and expands the use range of the worm gear.Specifications:Item Type: Brass Worm Material: BrassModel: 4309-0014-0024Center Aperture: Approx. 14mm/0.6inNumber of Teeth: 24Module: 1.5Purpose: Motor Drive GearPackage List:1 x Brass Worm 4. The images shown are not the actual item and are for your reference only.5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for . 8. We seller are not in charge of import duty, buyer is respons

• 1. The 24 tooth brass worm gear should be used with a stainless steel worm. The combination of this 24 tooth brass worm and the stainless steel worm that drives it creates a very compact, high torsion and robust 24:1 gear reduction ratio.
• 2. The combination is self locking and can realize reverse self locking, that is, only the worm can drive the worm wheel, but the worm wheel cannot drive the worm, so that the motor does not need to continue to apply torques to maintain the load.
• 3. It has a modulus of 1.5 and a center hole diameter of 14mm. It has a robot common hole grid pattern. There is a circular slot on one of the end faces of the gear, which is conducive to not changing the strength of the gear. Greatly reduce the weight of the gear.
• 4. It can avoid the interference of the protrusion of the screw head used to install the fixed gear, and ensure the flat of the installation. If the circular slot affects the assembly, then we can flip the gear and usethe other side of the gear to assemble.
• 5. The other side of the brass worm gear is a flat , this ingenious design facilitates the installation and fixation of the worm gear and expands the use range of the worm gear.
