20L Jacketed Glass Reactor, Double-Layer Lab Reactor with Digital Display & 50-500 RPM Speed Control, 110V High Borosilicate Glass Vessel for Chemical Reaction, Distillation & Synthesis

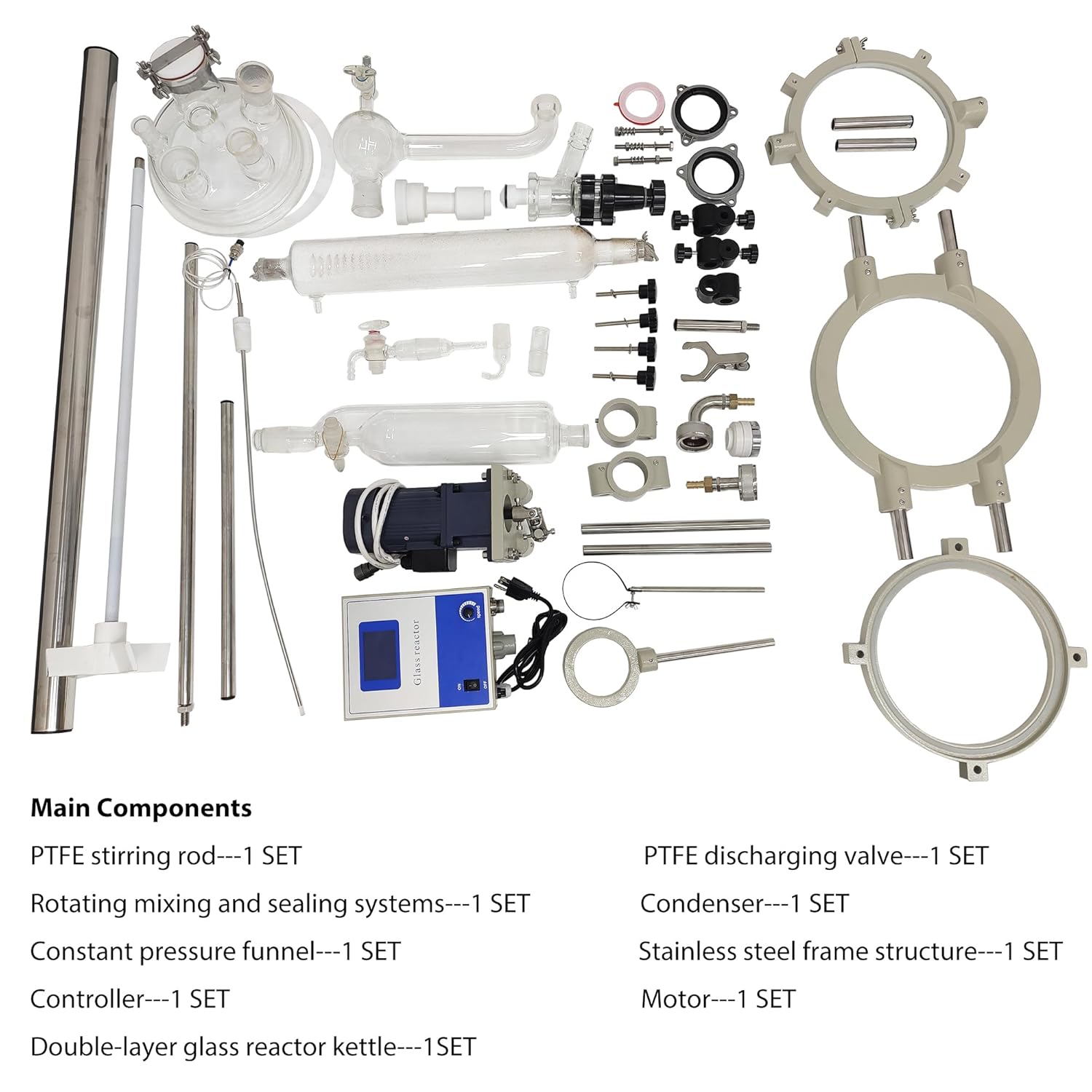

20L Glass reactor 110V This series jacketed glass reactor is designed according to customers’ actual requirements and new standards of jacketed glass reaction vessels. It absorbs the advantages of similar products. The series jacketed glass reactor is mainly used for the processes of combination, reaction, separation, concentration, etc. Parameters: Voltage: 110V60Hz Power: 120W Rotary speed：50-500 rpm Frequency Control Frame material: stainless steel Main material: GG-17 high borosilicate glass Considerations: Please read the instruction manual carefully before use Main Components: PTFE stirring rod---1 SET PTFE discharging valve---1 SET Rotating mixing and sealing systems---1 SET Condenser---1 SET Constant pressure funnel---1 SET Stainless steel frame structure---1 SET Controller---1 SET Motor---1 SET Double-layer glass reactor kettle---1SET Item Included(220567): 1 Set of 20L Glass reactor 110V

• Premium Borosilicate Glass & Sealing Performance for Safe, Leak-Free Operation: Engineered with lab-grade GG-17 borosilicate glass for superior chemical and thermal shock resistance, this 20L double-layer reactor ensures safe, leak-free operation. Its advanced PTFE rotary seal and discharge valve maintain a high vacuum, crucial for sensitive reactions. The integrated jacketed design offers ideal sealing environment for volatile or air-sensitive materials during synthesis and distillation
• Precise Digital Control for Reaction & Distillation: Adjustable Speed Jacket: Gain full command over your experiments with our intelligent control system. This jacketed glass reactor features a clear digital display for real-time monitoring and a stepless speed regulator (50-500 RPM). The double-layer design is its key feature: the interlayer can be connected to a circulator to circulate hot oil, ice water, or refrigerants, enabling precise heating or cooling of the reaction

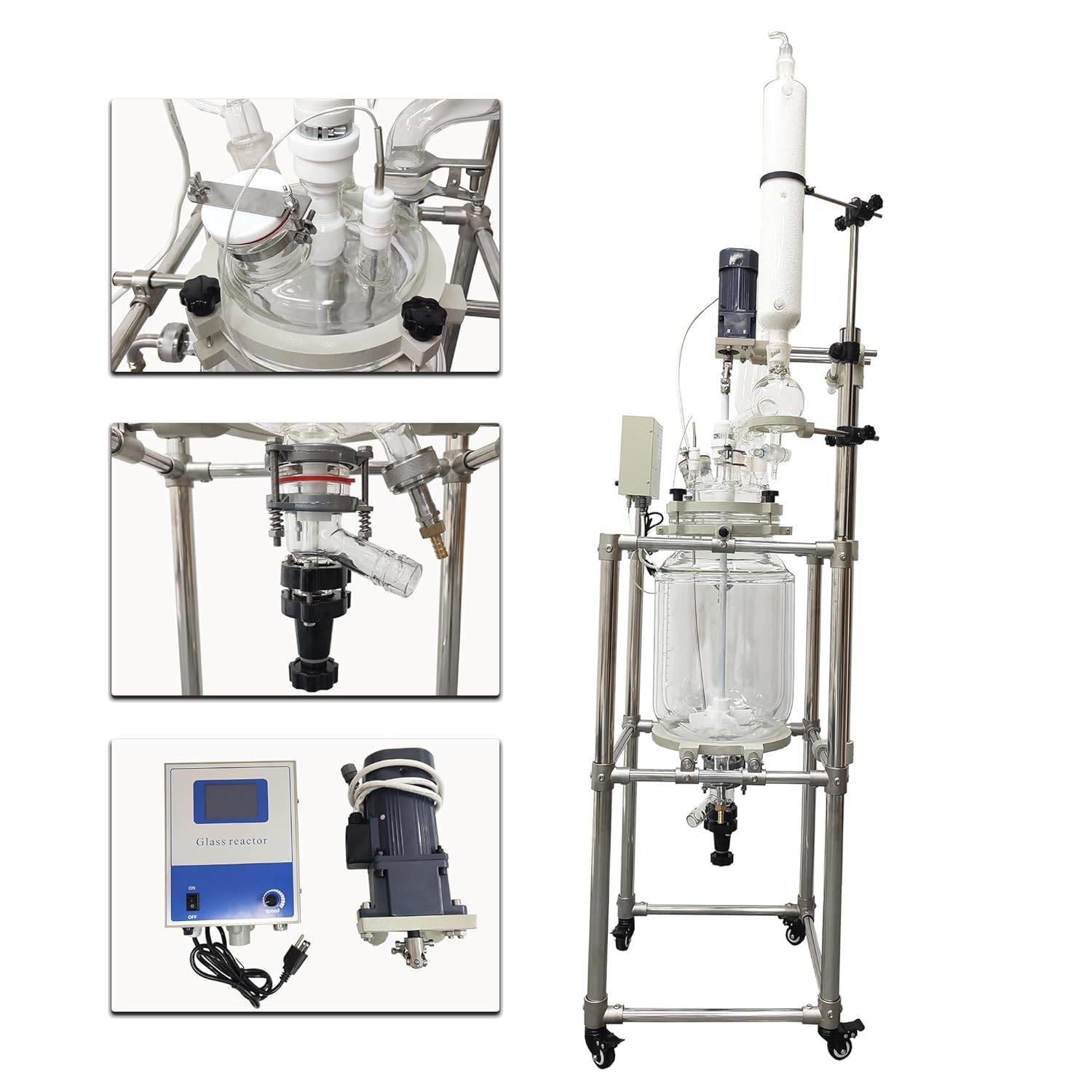

• Robust & User-Friendly Design with Mobile Stainless Steel Frame: This reactor combines durability with convenience. The robust 201 stainless steel frame provides solid support, while the included wheels with locks make it easy to move this 20L lab reactor safely and secure it in position. The stirring rod resists sticking, and the large-mouth discharge valve ensures complete, drip-free drainage without solvent residue—solving the common hassle of material waste and difficult cleanup.
• Versatile: A versatile workstation for complex chemical workflows, this 20L jacketed glass reactor streamlines both R&D and small-scale production. Supporting key operations like reflux, continuous feeding, and distillation, it handles the full process from combination and reaction to separation and concentration. Ideal for new material synthesis, fine chemicals, and pilot testing, it replaces multiple single-function setups, simplifying workflows in academic, industrial, and chemical labs

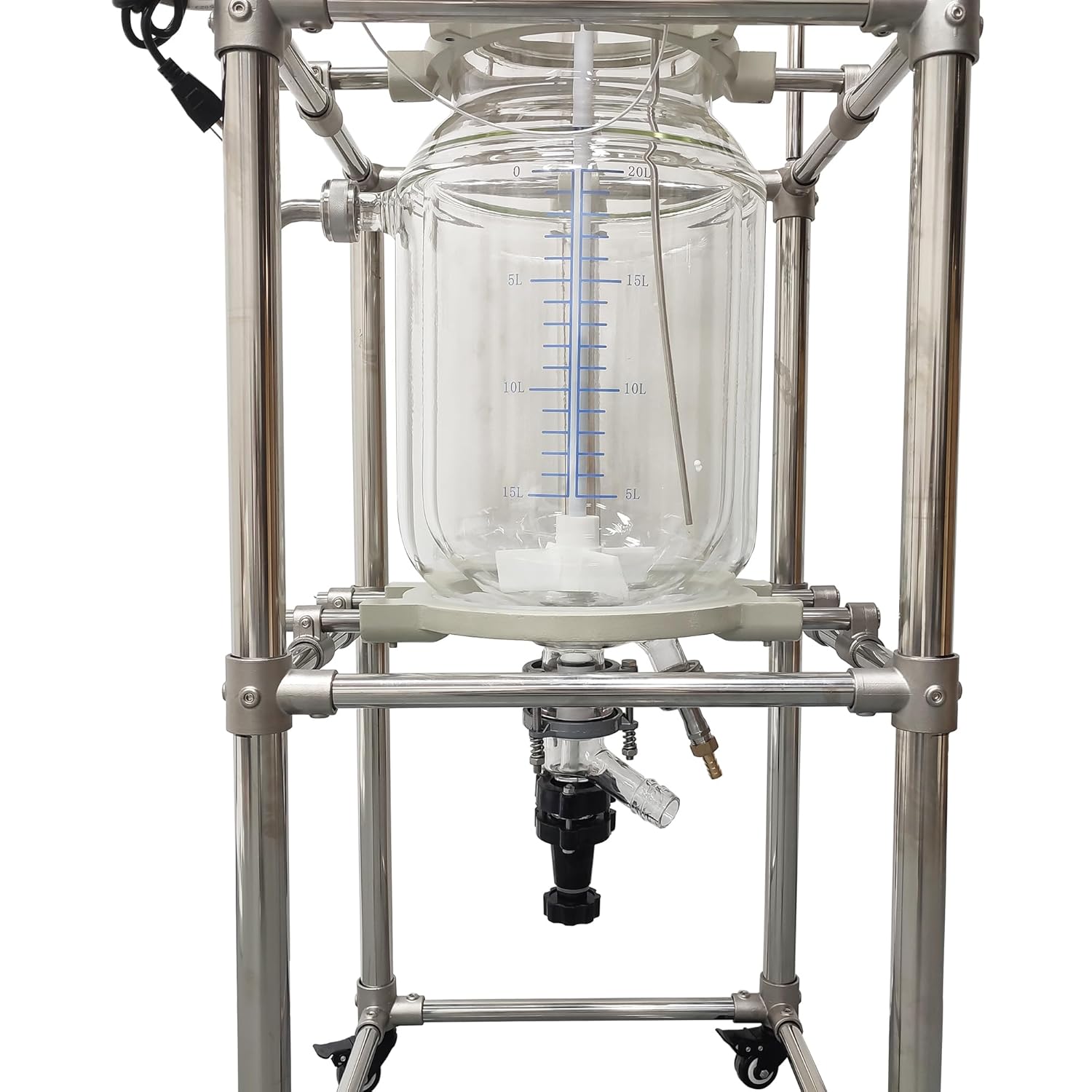

• Transparent Design for Safe Observation and Easy Maintenance: The fully transparent glass vessel enables safe, real-time visual monitoring of reaction progress and color changes without opening the system—allowing immediate adjustments. Its smooth surface ensures easy cleaning, while the spark-free motor and secure sealing enhance safety. This combination of visibility, maintenance ease, and built-in protection delivers reliable operation and quality control across diverse chemical processes
